White clamp for flue outlet, made of steel and provided with a WHITE finish of epoxy paint. Central hexagonal rivetted bushing for rod or M-8 screw fixing. Features two hexagonal M6 screws (captive), with a mixed head for flat, Phillips, and hex drivers. Side M-6 riveted and captive nuts to facilitate mounting.

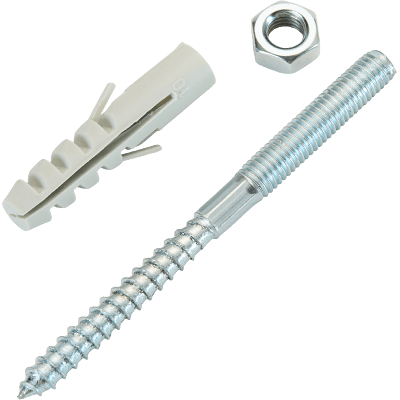

Supplied in individual bags containing: 1 white clamp, 1 double-threaded M8x100 screw, 1 M-8 DIN 934 hex nut, and a 10 mm nylon plug. Especially indicated for aluminum, sheet metal, or white PVC smoke outlet pipes.
Code
9098108000
9098110000
9098111000
9098112500
Thread
M-8
M-8
M-8
M-10
Ø mm
80
100
110
125
Unit Pack.
1 kit
1 kit
1 kit
1 kit
Gral. Pack.
25
25
25
25
Benefits in Smoke Outlet Installations
Easy Assembly and Durability
The white clamp for smoke outlet that MARTIGRAP has added to its tariff this year is an essential element in the installation of smoke extraction systems. Its design optimizes the assembly process thanks to the captive side nuts, which allows for a quick and secure installation.
Versatility
Using this clamp turns out to be a universal solution for pipes of different materials such as aluminum, sheet metal, or PVC, thanks to its adaptable design. This makes it a versatile option for multiple projects and ensures an aesthetic and discreet integration with most environments due to its neutral white finish.
Assured Safety
One of the main benefits of opting for MARTIGRAP’s white clamp for flue outlet is the safety it offers. With its solid build and the quality of its materials, it ensures a firm fix that withstands daily use conditions and protects against potential falls or accidents.
